>> HIGH PRESSURE PUMP

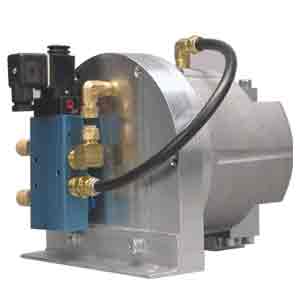

Wilden H25 1600S

Simplex-action piston pump creates approximately a 13:1 pressure ratio of discharge fluid pressure to inlet air supply to generate up to 110.3 bar (1,600 psig). The H25 1600S is the cost-effective solution for many applications that require discharge pressures greater than the 1:1 pressure ratio that is traditionally offered from most AODD pumps.

MaterialShip Wt
Aluminum7 kg (16 lbs)

NON-WETTED HOUSINGS

DescriptionMaterial
Center BlockN/A
Air ValveAluminum
Temperature Limits
Operation12.2°C to 65.6°C (10°F - 150°F)

FLOW RATE TO 4.1 LPM (1.1 GPM)
MAX INLET AIR PRESSURE = 8.6 BAR (125 PSI)
MAX DISCHARGE PRESSURE 110.3 Bar (1600psi)

WETTED HOUSINGS
(Water Chambers and Manifolds)

MAXIMUM SUCTION LIFT CAPABILITY
7.8 m Dry (25.5')
