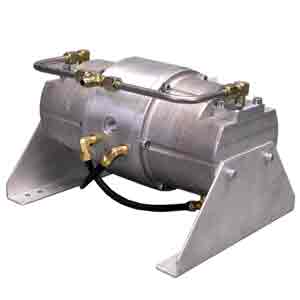

Wilden H38 3200D

Wilden H38 3200d

This double-action piston pump creates approximately a 26:1 pressure ratio of discharge fluid pressure to inlet air supply to generate up to 220.6 bar (3,200 psig). The R.038/3200D is the cost-effective solution for many applications that require discharge pressures greater than the 1:1 pressure ratio that is traditionally offered from most AODD pumps.

FLOW RATE TO 7.6 LPM (2 GPM)
MAX INLET AIR PRESSURE = 8.6 (BAR 125 PSI)
MAX DISCHARGE PRESSURE 220.6 Bar (3,200psi)

WETTED HOUSINGS
(Water Chambers and Manifolds)

MaterialShip Wt
Aluminum16 kg (36 lbs)

NON-WETTED HOUSINGS

DescriptionMaterial
Center SectionAluminum
Air ValvePolypropylene
Temperature Limits
Operation12.2°C to 65.6°C (10°F - 150°F)

MAXIMUM SUCTION LIFT CAPABILITY
7.1 m Dry (23.2')
