 P200 - 25 mm

Ultrapur

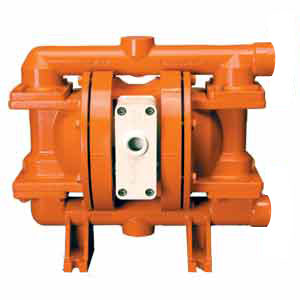

Wilden P200 - 25 mm (1'') Advanced Metal Pump
WETTED HOUSINGS
(Liquid Chambers and Manifolds)

MaterialShip Wt
Aluminum11 kg (24 lbs)
Ductile Iron21 kg (47 lbs)
316 S.S.23 kg (51 lbs)

NON-WETTED HOUSINGS

DescriptionMaterial
Center Section:Acetal,Conductive Polypropylene,PolypropyleneAir Valve:Acetal,Conductive Polypropylene,Polypropylene

FLOW RATE TO 212 LPM (56 GPM)
MAX PRESSURE = 8.6 BAR (125 PSIG)

MAXIMUM SUCTION LIFT CAPABILITY
5.5 m (18.0') Dry, 8.8m Wet (29.0')

MAXIMUM DIAMETER SOLIDS
6.4 mm (1/4'')

ELASTOMER OPTIONS

MaterialTemperature Limits
Buna-N®-12.2 (+10) to +82.2 (+180) °C (F°)
Neoprene-17.8 (+0) to +93.3 (+200) °C (F°)
EPDM™-51.1 (-60) to +137.8 (+280) °C (F°)
Polyurethane-12.2 (+10) to +65.6 (+150) °C (F°)
Saniflex™-28.9 (+20) to +104.4 (+220) °C (F°)
PTFE+4.4 (+40) to +104.4 (+220) °C (F°)
Viton®-40 (-40) to +176.7 (+350) °C (F°)
Wil-Flex™-40 (-40) to +107.2 (+225) °C (F°)
