P800 - 51 mm

Ultrapure

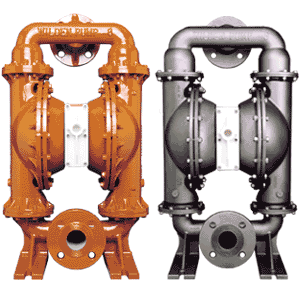

 Wilden P800 - 51 mm (2'') Advanced Metal Pump
FLOW RATE TO 591 (156 GPM)
MAX PRESSURE = 8.6 BAR (125 PSIG)
WETTED HOUSINGS
(Liquid Chambers and Manifolds)


MaterialShip Wt
Aluminum34 kg (75 lbs)
Alloy C103 kg (228 lbs)
Stainless Steel100 kg (220 lbs)

NON-WETTED HOUSINGS

DescriptionMaterial
Center BlockPolypropylene
Air ChambersAluminum,PTFE-coated 316 Stainless Steel
Air ValvePolypropylene

MAXIMUM SUCTION LIFT CAPABILITY
6.1 m Dry (19.9'), 8.6 m (28.4') Wet
MAXIMUM DIAMETER SOLIDS
6.4 mm (1/4'')
ELASTOMER OPTIONS

MaterialTemperature Limits
Buna-N®-12.2 (+10) to +82.2 (+180) °C (F°)
Neoprene-17.8 (+0) to +93.3 (+200) °C (F°)
EPDM™-51.1 (-60) to +137.8 (+280) °C (F°)
Polyurethane-12.2 (+10) to +65.6 (+150) °C (F°)
Saniflex™-28.9 (+20) to +104.4 (+220) °C (F°)
PTFE+4.4 (+40) to +104.4 (+220) °C (F°)
Viton®-40 (-40) to +176.7 (+350) °C (F°)
Wil-Flex™-40 (-40) to +107.2 (+225) °C (F°)
