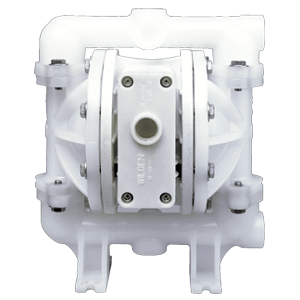

 Wilden P100 - 13 mm (1/2") Advanced Plastic Pump
WETTED HOUSINGS
(Water Chambers and Manifolds) | Material | Ship Wt | | Polypropylene | 4 kg (8 lbs) | | PVDF | 5 kg (10 lbs) |
NON-WETTED HOUSINGS | Description | Material | | Center Section | Polypropylene | | Air Chambers | Polypropylene | | Air Valve | Polypropylene |
FLOW RATE TO 56 LPM (14.8 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)
MAXIMUM SUCTION LIFT CAPABILITY
5.5 m (17.0') Dry, 9.3 m (30.6') Wet
MAXIMUM DIAMETER SOLIDS
1.6 mm (1/16'') |
