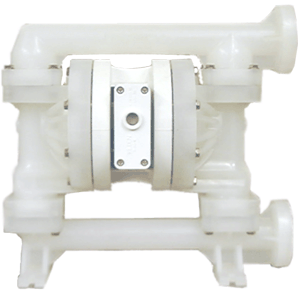

 Wilden P200 - 25 mm (1'') Advanced Plastic Pump
WETTED HOUSINGS
(Water Chambers and Manifolds) | Material | Ship Wt | | Polypropylene | 10 kg (22 lbs) | | PVDF | 15 kg (32 lbs) | | PFA | 18 kg (40 lbs) |
NON-WETTED HOUSINGS | Description | Material | | Center Block | Polypropylene | | Air Chambers | Polypropylene | | Air Valve | Polypropylene |
FLOW RATE TO 220 LPM (58 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)
MAXIMUM SUCTION LIFT CAPABILITY
3.6m (11.9') Dry, 9.8 m Wet (32.0')
MAXIMUM DIAMETER SOLIDS
4.76mm (3/16'') |
