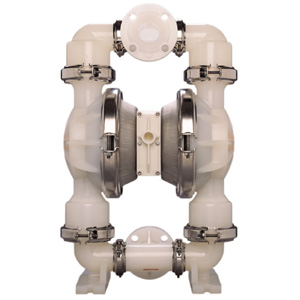

Wilden P8 - 51 mm (2'') Plastic Pump

One Inch Pumps

Wilden P8 - 51 mm (2'') Plastic Pump
WETTED HOUSINGS
(Water Chambers and Manifolds)

MaterialShip Wt
Polypropylene34 kg (75 lbs)
PVDF43 kg (95 lbs)

NON-WETTED HOUSINGS

DescriptionMaterial
Center BlockPolypropylene
Air ChambersAluminum, Teflon®-coated Aluminum, 316 S.S.
Air ValvePolypropylene

FLOW RATE TO 644 LPM (170 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)

MAXIMUM SUCTION LIFT CAPABILITY
7.8 m (25.5') Dry, 9.2 m (30.1') Wet

MAXIMUM DIAMETER SOLIDS
6.35 mm (1/4'')

ELASTOMER OPTIONS

MaterialTemperature Limits
Buna-N®-12.2 (+10) to +82.2 (+180) °C (F°)
Neoprene-17.8 (+0) to +93.3 (+200) °C (F°)
EPDM™-51.1 (-60) to +137.8 (+280) °C (F°)
Polyurethane-12.2 (+10) to +65.6 (+150) °C (F°)
Saniflex™-28.9 (+20) to +104.4 (+220) °C (F°)
PTFE+4.4 (+40) to +104.4 (+220) °C (F°)
Viton®-40 (-40) to +176.7 (+350) °C (F°)
Wil-Flex™-40 (-40) to +107.2 (+225) °C (F°)
One Inch Pumps

A2_Plastic
AIR SYSTEM BASE TYPE
T = TURBO-FLO™
P = PRO-FLO™
B = ADAPTER BLOCK
WETTED PARTS
K = PVDF
P = POLYPROPYLENE
CENTER SECTION
PP = POLYPROPYLENE
