>> ORIGINAL SERIES

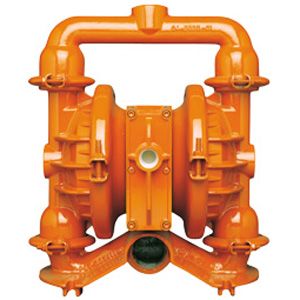

Wilden P4 - 38 mm (1 1/2") Metal Pump

Three Inch Pumps

Wilden P4 - 38 mm (1 1/2") Metal Pump
WETTED HOUSINGS
(Water Chambers and Manifolds)


MaterialShip Wt
Aluminum21 kg (46 lbs)
Cast Iron30 kg (66 lbs)
316 S.S.28 kg (62 lbs)

NON-WETTED HOUSINGS

DescriptionMaterial
Center SectionAcetal
Center BlockPolypropylene
Air ValvePolypropylene or Acetal
Air Chambers316 S.S., Aluminum, Acetal

FLOW RATE TO 306.5 LPM (81 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)
MAXIMUM SUCTION LIFT CAPABILITY
6.9 m (22.7') Dry, 9.3 m (30.6') Wet
MAXIMUM DIAMETER SOLIDS
4.8 mm (3/16'')
ELASTOMER OPTIONS

MaterialTemperature Limits
Buna-N®-12.2 (+10) to +82.2 (+180) °C (F°)
Neoprene-17.8 (+0) to +93.3 (+200) °C (F°)
EPDM™-51.1 (-60) to +137.8 (+280) °C (F°)
Polyurethane-12.2 (+10) to +65.6 (+150) °C (F°)
Saniflex™-28.9 (+20) to +104.4 (+220) °C (F°)
PTFE+4.4 (+40) to +104.4 (+220) °C (F°)
Viton®-40 (-40) to +176.7 (+350) °C (F°)
Wil-Flex™-40 (-40) to +107.2 (+225) °C (F°)



Three Inch Pumps

T15-A15_Metal
WETTED PARTS
A = ALUMINUM
H = HASTELLOY
S = STAINLESS STEEL
W = CAST IRON
AIR CHAMBERS
A = ALUMINUM
N = NICKEL-PLATED
S = STAINLESS STEEL
W = CAST IRON
CENTER SECTION
A = ALUMINUM
N = NICKEL-PLATED
P = POLYPROPYLENE
S = STAINLESS STEEL

Three Inch Pumps

W15_Metal
WETTED PARTS
A = ALUMINUM
H = HASTELLOY
S = STAINLESS STEEL
W = CAST IRON
AIR CHAMBERS
A = ALUMINUM
W = CAST IRON
CENTER SECTION
A = ALUMINUM
AIR VALVE
F = TEFLONR PFA-COATED
J = NICKEL-PLATED (TURBO)
T = BRASS (TURBO)
X = 316 STAINLESS STEEL
