Wilden PX4 - 38 mm (1 1/2'') Metal Pump

Quarter Inch Pump

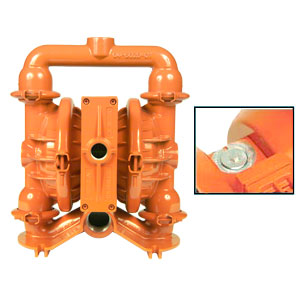

Wilden PX4 - 38 mm (1 1/2'') Metal Pump
WETTED HOUSINGS
(Water Chambers and Manifolds)

MaterialShip Wt
Aluminum21 kg (46 lbs)
Cast Iron30 kg (66 lbs)
316 Stainless Steel28 kg (67 lbs)

NON-WETTED HOUSINGS

DescriptionMaterial
Center SectionAluminum, Stainless Steel
Air ValveAluminum, Stainless Steel

FLOW RATE TO 327 LPM (87 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)

MAXIMUM SUCTION LIFT CAPABILITY
6.9 m (22.7') Dry, 9.3 m (30.6') Wet

MAXIMUM DIAMETER SOLIDS
4.8 mm (3/16'')

ELASTOMER OPTIONS

MaterialTemperature Limits
Buna-N®-12.2 (+10) to +82.2 (+180) °C (F°)
Neoprene-17.8 (+0) to +93.3 (+200) °C (F°)
EPDM™-51.1 (-60) to +137.8 (+280) °C (F°)
Polyurethane-12.2 (+10) to +65.6 (+150) °C (F°)
Saniflex™-28.9 (+20) to +104.4 (+220) °C (F°)
PTFE+4.4 (+40) to +104.4 (+220) °C (F°)
Viton®-40 (-40) to +176.7 (+350) °C (F°)
Wil-Flex™-40 (-40) to +107.2 (+225) °C (F°)
Quarter Inch Pump

A.025_Plastic
AIR SYSTEM BASE TYPE
T = TURBO-FLO™
P = PRO-FLO™
B = ADAPTER BLOCK
WETTED PARTS
K = PVDF
P = POLYPROPYLENE
CENTER SECTION
PP = POLYPROPYLENE
