Wilden T4 - 38 mm (1 1/2") Metal Pump

Two Inch Pumps

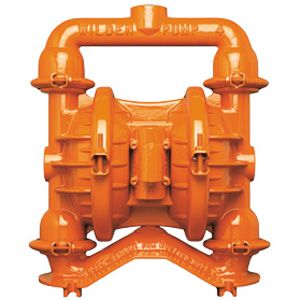

Wilden T4 - 38 mm (1 1/2") Metal Pump
WETTED HOUSINGS
(Water Chambers and Manifolds)

MaterialShip Wt
Aluminum17.5 kg (38.0 lbs)
Stainless Steel26 kg (57.0 lbs)
Cast Iron26 kg (57.0 lbs)

NON-WETTED HOUSINGS

DescriptionMaterial
Center SectionAluminum
Air ValveBrass

FLOW RATE TO 307 LPM (81 GPM)
MAX PRESSURE = 8.6 BAR (125 PSI)

MAXIMUM SUCTION LIFT CAPABILITY
5.5 m (18') Dry, 8.5m (28') Wet

MAXIMUM DIAMETER SOLIDS
5 mm (3/16

ELASTOMER OPTIONS

MaterialTemperature Limits
Buna-N®-12.2 (+10) to +82.2 (+180) °C (F°)
Neoprene-17.8 (+0) to +93.3 (+200) °C (F°)
Two Inch Pumps

P8_Plastic
WETTED PARTS
K = KYNAR/PVDF
P = POLYPROPYLENE
AIR CHAMBERS
A = ALUMINUM
C = TEFLON®-COATED
ALUMINUM
V = HALAR®-COATED
ALUMINUM
S = STAINLESS STEEL
